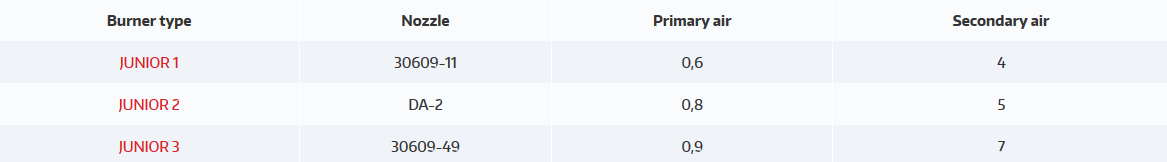

Primary and secondary air adjustments for Junior

Burner type Nozzle Primary air Secondary air
JUNIOR 1 30609-11 0,6 4
JUNIOR 2 DA-2 0,8 5
JUNIOR 3 30609-49 0,9 7

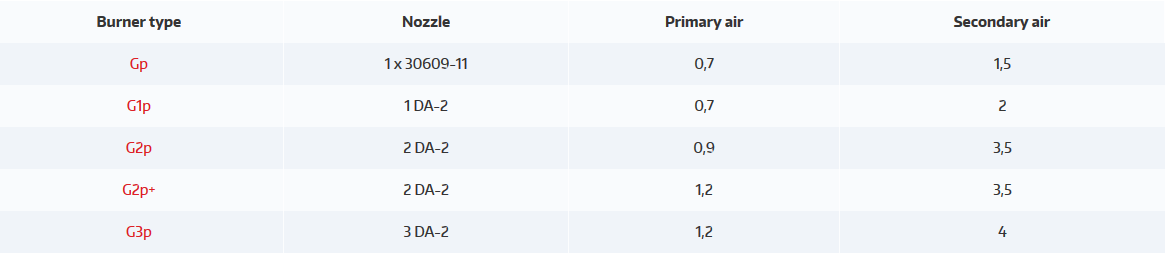

Primary and secondary air adjustments for Gp Series

Burner type Nozzle Primary air Secondary air
Gp 1 x 30609-11 0,7 1,5
G1p 1 DA-2 0,7 2
G2p 2 DA-2 0,9 3,5
G2p+ 2 DA-2 1,2 3,5
G3p 3 DA-2 1,2 4

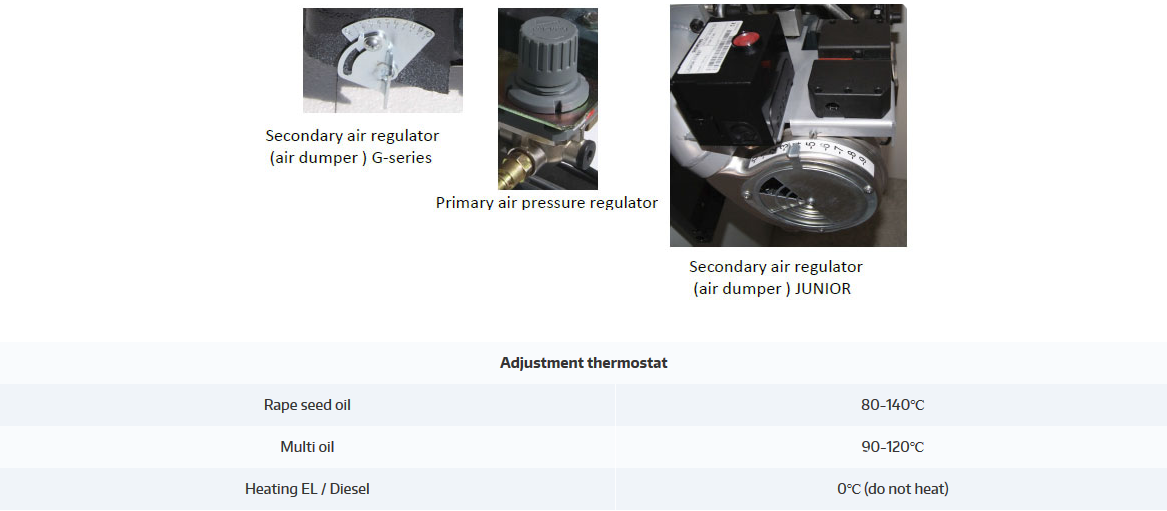

Adjustment thermostat
Rape seed oil 80-140℃
Multi oil 90-120℃
Heating EL / Diesel 0℃ (do not heat)

Adjusting thermostat

When setting burner for the first time into operation, fill burner tank with combustion manual. Normal oil level is 50mm from the top. If you fill it more, overflow switch will turn off the burner!
